Summit 24" 3.2 Cu. Ft. Panel Ready Under Counter Refrigerator


Model #:

FFRF5IMPNRLHD

Summit 24" 3.2 Cu. Ft. Panel Ready Under Counter Refrigerator-0
Summit 24" 3.2 Cu. Ft. Panel Ready Under Counter Refrigerator-1
Summit 24" 3.2 Cu. Ft. Panel Ready Under Counter Refrigerator-2
Summit 24" 3.2 Cu. Ft. Panel Ready Under Counter Refrigerator-3
Summit 24" 3.2 Cu. Ft. Panel Ready Under Counter Refrigerator-4

At a Glance

Product Dimensions 34.25"h x 23.38"w x 22.63"d

Sized at 24" wide, the FFRF5IMPNRLHD is an bottom-mount refrigerator-freezer featuring a front-breathing design that allows built-in installation under counters. The unit has a user-reversible stainless steel door with a fully articulating European-style hinge design to ensure a smoother opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design. The user-reversible door swing allows easy adjustment as needed. To complete the look, the model also includes a pro-style handle and a fully finished black cabinet, enabling freestanding use. A factory-installed lock adds enhanced security, while the sealed rear and right-angle plug offer a better fit. This unit comes with a left-hand door swingRead More

$3,190.00

Get to know this product.

Product Overview

Product Overview

Summit brings quality and value under the counter with the industry’s largest collection of built-in refrigerator-freezers.

Inside, this model features a frost-free freezer compartment, and above is a fresh food refrigerator compartment. Both sections include LED lighting. An innovative touch control system lets you manage both the refrigerator and freezer temperature with an intuitive digital thermostat. The readout can be viewed in Fahrenheit or Celsius. This unit includes an optional Sabbath mode setting to allow users to disable certain functions during periods of religious observance. Audible alarms sound if the door is left open for over a minute or if the temperature is not cold enough.

The upper refrigerator compartment includes one adjustable glass shelf for cleaner, spill-proof storage of small fresh food items. A large removable door rack offers additional storage ideal for condiments and beverages. An internal fan assures the compartment is cooled evenly from top to bottom. This section is designed to function at 36 to 43°F to store food and beverages.

The lower freezer compartment is equipped with a factory-installed icemaker that produces up to 5 lbs. of crescent ice cubes per day. No drain is required . The freezer operates between -11 and +11ºF. A half-sized glass shelf is included to help store small frozen meals or ice cream on the other side of the icemaker.

The FFRF5IMPNRLHD is ETL listed to UL standards for residential use. With its versatile performance, professional finish, and pre-installed icemaker, this refrigerator-freezer is a convenient option for small apartments, second kitchens, tiny homes, home bars, offices, and other settings in need of all-in-one storage under the counter.

24" Wide Built-In Refrigerator-Freezer

Undercounter 3.2 cu.ft. refrigerator-freezer with a factory-installed icemaker and lock

Built-In Undercounter Design

Front-breathing design lets you make the best use of space by installing your appliance under the counter

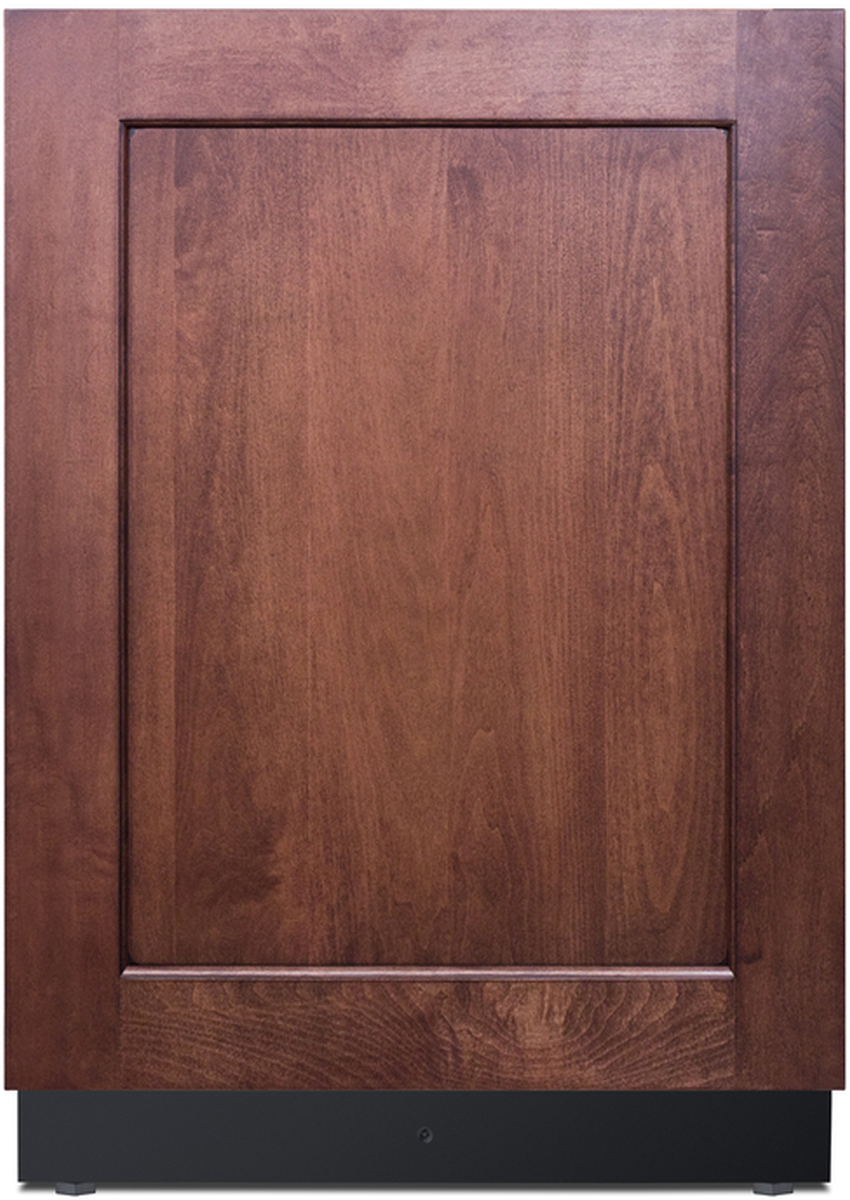

Panel-Ready Door

European style articulating door hinge and bracket kit allow easy installation of custom overlay panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 3/8" W

Stainless Steel Door Option

Unit ships with a stainless steel door front that you can remove to add a panel and reapply if your style changes

Frost-Free Operation

No-frost convenience for reduced user maintenance

Dual Zone Storage

Refrigerator section functions at 36 to 43ºF for fresh food and beverage storage, while the lower freezer operates between -11 and 11ºF to store ice cream, frozen meals, and more

Bottom-Mount Freezer

Separate freezer space provides ample storage for frozen foods

Factory-Installed Icemaker

Produces up to 5 lbs of crescent cubes in a day

Stainless Steel Finish

Door features a sleek stainless steel finish for a professional look

Digital Temperature Control

Intuitive digital control panel makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Convertible Temperature Display

Temperature readout can be displayed in Fahrenheit or Celsius

High Temperature Alarm

Audible alarm sounds if the interior temperature rises out of range

Open Door Alarm

Audible alarm sounds if the door is left open for over 1 minute

Door Storage

Removable refrigerator rack ideal for keeping bottles and condiments in easy reach

Adjustable Glass Shelves

Both refrigerator and freezer sections come with a half-sized glass shelf

Interior LED Lighting

Automatically illuminates both compartments when you open the door

Sabbath Mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Internal Fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Fully Finished Black Cabinet

Allows the unit to be used freestanding

Black Interior

Attractive jet black finish inside to match the cabinet and kickplate

Fully Articulating Style Hinge

European style door hinge design ensures a flush fit and allows for a smoother opening

Factory Installed Lock

Keyed lock for a secure interior (2 keys included)

Right Angle Plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-Tip Bracket

Included bracket recommended for installation to help prevent tipping for added safety

Sealed Back

No exposed coils for easier cleaning and a better fit

No Drain Required

Convenient design allows more flexibility in positioning the unit

Left Hand Door Swing

For this unit with a standard right hand door swing,

Useful Documents
Specifications

General Specs

ColorCustom
Color/Finish NamePanel Ready
Door ColorCustom
Fingerprint Resistant FinishNo
Type of RefrigeratorUnder The Counter Refrigerator
Installation TypeBuilt-In
Depth TypeStandard Depth
Number of Doors1
Total Capacity (cu. ft.)3.2
Refrigerator Capacity (cu. ft.)1.95
Freezer Capacity (cu. ft.)1.25
Defrost TypeFrost Free
Door Panel TypePanel
Door Swing OptionLeft Hinge
Ice Maker TypeSingle Ice Maker
Ice TypeCrescent
Ice MakerYes
Ice/Water DispenserNo
Defrost SystemAutomatic
Refrigeration General FeaturesDigital Temperature Control, Interior Light, LED Light, Sabbath Mode, Removable Ice Basket, Locking Door, Door Alarm
Custom Panel ReadyYes
Smart CompatibleNo
Appliance Fit Width (in.)24
Width (in.)23.38
Depth (in.)22.63
Depth w/Door Open 90 Degrees (in.)48.75
Height (in.)34.25
Overall Height (in.)34.25
Shipping Depth (in.)31
Shipping Width (in.)31
Shipping Height (in.)40
Product Weight (lbs.)130
ENERGY STAR CertifiedNo
ADA CompliantNo
Manufacturer Warranty1 Year Parts & Labor / 5 Years Compressor
Voltage115
Frequency60
Amp3
